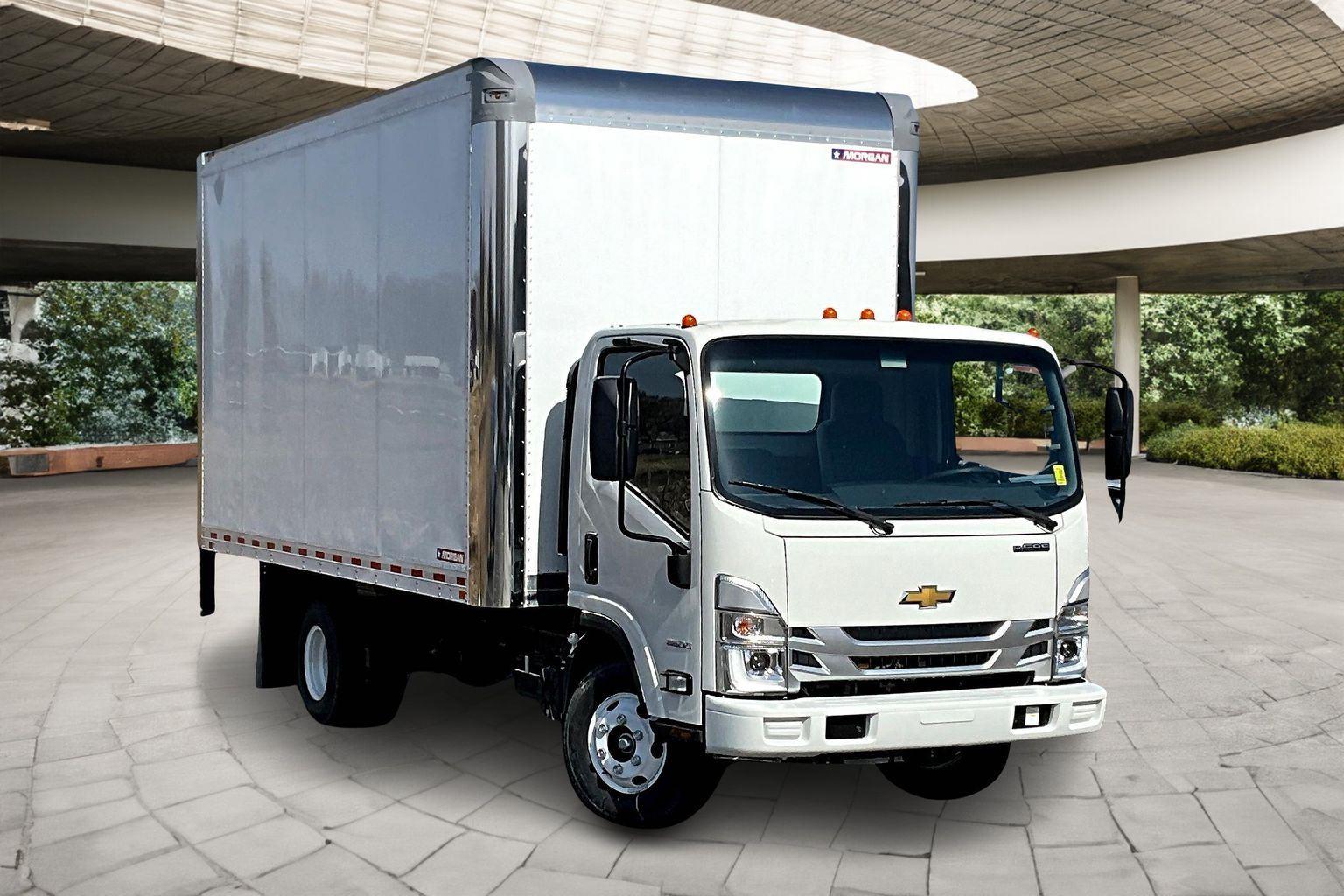

New 2025 Chevrolet Low Cab Forward 3500 MEDIUM ASH GRAY
- VIN: 54DBDW1D2SS204917
- Stock: 125004
(28) Photos
/
Details Form Opened
Details
New 2025 Chevrolet Low Cab Forward 3500 MEDIUM ASH GRAY
VIN: 54DBDW1D2SS204917STOCK: 125004Basic Info
-
Exterior:Arc White
-
Drivetrain:Rear Wheel Drive
-
Interior:Medium Ash Gray, Cloth seat trim
-
Transmission:Automatic
-
Engine:ENGINE GAS, 8 CYL, 6.6L, SIDI, VVT, CAST IRON
Key Features
-
Bluetooth
Description
2025 Chevrolet 3500 HG LCF Gas lCP13003 6.6L V8 Preferred Equipment Group 1WT. Price includes: $250 - Customer Cash. Exp. 01/02/2025
Vehicle Details
Exterior
- Wheels, 16" x 6, K. steel (STD)
- Tires, front, 215/85R16 E, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Tires, rear, 215/85R16 E, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Assist steps
- LED Headlamps
- Grille, Silver
- Glass, tinted
- Mirror, outside left-hand and right-hand with integral convex mirrors
- Windshield wiper, pulse, wet arm
Interior
- Seat, front high back bucket driver and passenger tricot cloth covered reclining high back driver seat with single two-occupant fold down passenger seat (STD)
- Cup holders
- Floor mats
- Steering wheel, urethane
- Steering column, Tilt-Wheel
- Driver Information Center
- Windows, power
- Air conditioning, single-zone manual, integral in-dash mounted
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Storage, door pockets
- Lighting, interior dome
- Storage, seatback pockets
Entertainment
- Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth (STD)
- Audio system feature, 2 speakers
Mechanical
- Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm, 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control, engine oil cooler, High Idle Mode (1200 rpm). (STD)
- Transmission, 8-speed automatic, 8L90 (STD)
- Rear axle, 3.90 ratio
- Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm, 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control, engine oil cooler, High Idle Mode (1200 rpm).
- Drivetrain, rear-wheel drive
- Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
- Incomplete vehicle certification
- Wheelbase, 150" (381.0 cm)
- GVWR, 12,000 lbs. (5443 kg)
- Rear suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering, with an 18.8-20.9:1 gear ratio
- Vehicle Application Truck
- Brakes, 4-wheel antilock, front and rear disc
- Fuel tank, 38.6 Gallon, (146L), rectangular fuel tank mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill.
- Exhaust, single outlet
Safety
- Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
- Daytime Running Lamps
Tech Specs
- Vehicle Name: Chevrolet 3500 HG LCF Gas
- Body Style: Regular Cab Chassis Cab
- Body Code:
- Drivetrain: Rear Wheel Drive
- Passenger Capacity: 3
- Number of Passenger Doors: 2
- Gross Axle Wt Rating - Front: 4860
- Gross Axle Wt Rating - Rear: 8840
- Curb Weight - Front: 3418
- Curb Weight - Rear: 1905
- Gross Vehicle Weight Rating Cap: 12000
- Gross Combined Wt Rating: 18000
- Engine Order Code: L8T
- Engine Type: Gas V8
- Displacement: 6.6L/- TBD -
- Fuel System: Direct Fuel Injection
- SAE Net Horsepower @ RPM: 350 @ 4500
- SAE Net Torque @ RPM: 425 @ 3800
- Trans Order Code: N8X
- Trans Type: 8
- Trans Description Cont.: Automatic
- Trans Description Cont. Again:
- First Gear Ratio (:1): - TBD -
- Second Gear Ratio (:1): - TBD -
- Third Gear Ratio (:1): - TBD -
- Fourth Gear Ratio (:1): - TBD -
- Fifth Gear Ratio (:1): - TBD -
- Sixth Gear Ratio (:1): - TBD -
- Reverse Ratio (:1): - TBD -
- Clutch Size:
- Trans Power Take Off:
- Trans PTO Access:
- Transfer Case Model:
- Transfer Case Gear Ratio (:1), High:
- Transfer Case Gear Ratio (:1), Low:
- Transfer Case Power Take Off:
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd):
- Cold Cranking Amps @ 0° F (3rd):
- Maximum Alternator Capacity (amps): 170
- Maximum Alternator Watts: - TBD -
- Total Cooling System Capacity: - TBD -
- Engine Oil Cooler: Yes
- Frame Type: Ladder-Type Channel-Section
- Sect Modulus Rails Only: 7.20
- Frame RBM: 316800
- Frame Strength: 44000
- Frame Thickness: 8.50 X 2.76 X 0.24
- Suspension Type - Front: Semi Elliptical Multi-Leaf Spring
- Suspension Type - Rear: Semi Elliptical Multi-Leaf Spring
- Spring Capacity - Front: 6830
- Spring Capacity - Rear: 12900
- Axle Type - Front: Reverse Elliot I-Beam
- Axle Type - Rear: Full-Floating
- Axle Capacity - Front: 6830
- Axle Capacity - Rear: 11020
- Axle Ratio (:1) - Front:
- Axle Ratio (:1) - Rear: 3.90
- Shock Absorber Diameter - Front: 42.0
- Shock Absorber Diameter - Rear: 42.0
- Stabilizer Bar Diameter - Front: 1.65
- Stabilizer Bar Diameter - Rear:
- Front Tire Order Code: 2TA
- Rear Tire Order Code: 3TA
- Spare Tire Order Code:
- Front Tire Size: 215/85R16
- Rear Tire Size: 215/85R16
- Spare Tire Size:
- Front Tire Capacity: 4860
- Rear Tire Capacity: 8840
- Spare Tire Capacity:
- Revolutions/Mile @ 45 mph - Front: 682.9
- Revolutions/Mile @ 45 mph - Rear: 682.9
- Revolutions/Mile @ 45 mph - Spare:
- Front Wheel Size: 16 x 6.0
- Rear Wheel Size: 16 x 6.0
- Spare Wheel Size:
- Front Wheel Offset: 127
- Rear Wheel Offset: 127
- Spare Wheel Offset:
- # of Bolt Holes - Front: 6
- # of Bolt Holes - Rear: 6
- # of Bolt Holes - Spare:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 18.8 - 20.9
- Steering Ratio (:1), At Lock: 18.8 - 20.9
- Turning Diameter - Curb to Curb: 45.3
- Turning Diameter - Wall to Wall: 49.1
- Brake Type: Pwr
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line):
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 14.3 x - TBD -
- Rear Brake Rotor Diam x Thickness: - TBD -
- Drum - Front (Yes or ):
- Front Drum Diam x Width:
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 38.6
- Aux Fuel Tank Capacity, Approx:
- Fuel Tank Location: Frame Rail
- Aux Fuel Tank Location:
- Front Head Room: 38.40
- Front Leg Room: 29.50
- Front Shoulder Room: 70.70
- Front Hip Room: 67.70
- Wheelbase: 150
- Length, Overall: 241.5
- Width, Max w/o mirrors: 81.3
- Height, Overall: 90
- Overhang, Front: 48.4
- Overhang, Rear w/o bumper: 43.1
- Front Bumper to Back of Cab: 70.9
- Cab to Axle: 127.5
- Cab to End of Frame: 170.6
- Ground to Top of Load Floor:
- Ground to Top of Frame: 31.8
- Frame Width, Rear: 33.5
- Ground Clearance, Front: 7.5
- Ground Clearance, Rear: 7.5
- Front Frame Rating: - TBD -
- Seventh Gear Ratio (:1): - TBD -
- Eighth Gear Ratio (:1): - TBD -
- Ninth Gear Ratio (:1):
- Tenth Gear Ratio (:1):
- Eleventh Gear Ratio (:1):
- Twelfth Gear Ratio (:1):
- Thirteenth Gear Ratio (:1):
- Fourteenth Gear Ratio (:1):
- Fifteenth Gear Ratio (:1):
- Sixteenth Gear Ratio (:1):
- Seventeenth Gear Ratio (:1):
- Eighteenth Gear Ratio (:1):
- Nineteenth Gear Ratio (:1):
- Twentieth Gear Ratio (:1):
- Second Reverse Gear Ratio (:1):
- Third Reverse Gear Ratio (:1):
- Fourth Reverse Gear Ratio (:1):
- Fifth Reverse Gear Ratio (:1):
- Sixth Reverse Gear Ratio (:1):
- Body Weight (uncalculated): - TBD -
- Driver Weight: - TBD -
- Axle Ratio - Low Rear (:1):
- Driver Ratio: - TBD -
- Torque @ Clutch Engage: - TBD -
- Cab to Body: - TBD -
- Grade (%): - TBD -
- Frontal Area: - TBD -
- Governed Engine Speed (RPM):
- Torque Converter:
- Front Wheel Description Cont.:
- Rear Wheel Description Cont.:
- Spare Wheel Description Cont.:
- Static Loaded Radius: - TBD -
- Front Bolt Pattern: - TBD -
- Rear Bolt Pattern: - TBD -
- Spare Bolt Pattern:
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Number Of Tires Spare:
- Transmission Manufacturer:
- Transmission Type:
- Engine Series: GMPT
- Body Length Default Value: - TBD -
- Engine Horsepower At RPM: 350 @ 4500
- Engine Horsepower At Max Speed RPM: - TBD -
- Max Speed For Gradeability: - TBD -
- Country of Origin: United States N-Gas Incomplete vehicles
Details
- A/C
- ABS
- 4-Wheel Disc Brakes
- Rear Wheel Drive
- 8 Cylinder Engine
- Floor Mats
- Gasoline Fuel
- Daytime Running Lights
- Power Door Locks
- Running Boards/Side Steps
- Cloth Seats
- Bucket Seats
- Power Steering
- Adjustable Steering Wheel
- Tires - Front All-Season
- Tires - Rear All-Season
- Power Windows
- A/T
- Steel Wheels
- Bluetooth Connection
- 8-Speed A/T
- LED Headlights
